3D Pre-stack Depth Migration

To meet today’s needs for more accurate and true depth seismic imaging, Seitel offers both Emerson Kirchhoff and EarthStudy™ 360 (ES360) Depth Migrations using velocity models derived through an iterative process of grid or model-based Reflection Tomography and Anisotropic Welltie Tomography.

This process is traditionally used to resolve complex structural problems but is increasingly used in non-structurally complex areas where velocities vary significantly both laterally and vertically over a thin reservoir. This can aid in well steering within thin layers, but these layers are often poorly represented by time imaging (PSTM). Pre-Stack Depth (PSDM) gathers form an ideal input for interpretation and further analysis.

Kirchhoff Depth Migration

  • Offset Gathers
  • OVT Gathers

EarthStudy 360 Depth Migration

  • CRAM Gathers
  • Angle-Azimuth Gathers
  • Directional Gathers
  • Specular and Diffraction Gathers
  • Orthorhombic Migration

Velocity Model Building

  • Isotropic Velocity
  • Anisotropic (Vertical) Velocity
  • Delta & Epsilon Volumes

Input for further processing and analysis

  • Gather Conditioning
  • Coherency & Curvature Cubes
  • HTI Analysis
  • Fracture Mapping
ES360 Depth Stack
Anisotropic Velocity Model

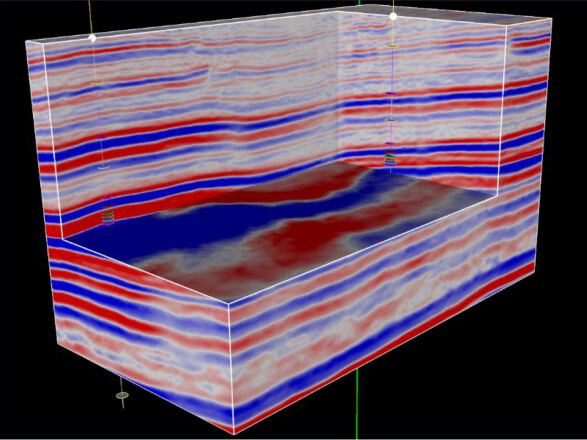

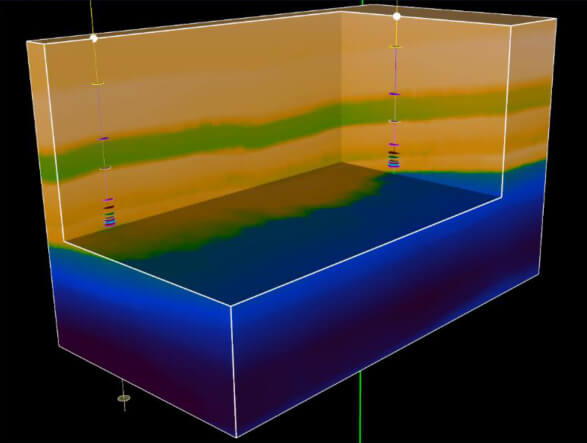

An ES360 Reflection Angle Depth Stack and Anisotropic Vertical Velocity Model. Depth migration uses travel time computation via ray-tracing through the velocity volume in addition to Epsilon, Delta, Dip/Azimuth, and other volumes required by VTI, TTI, and Orthorhombic migration.
