Broadband Processing

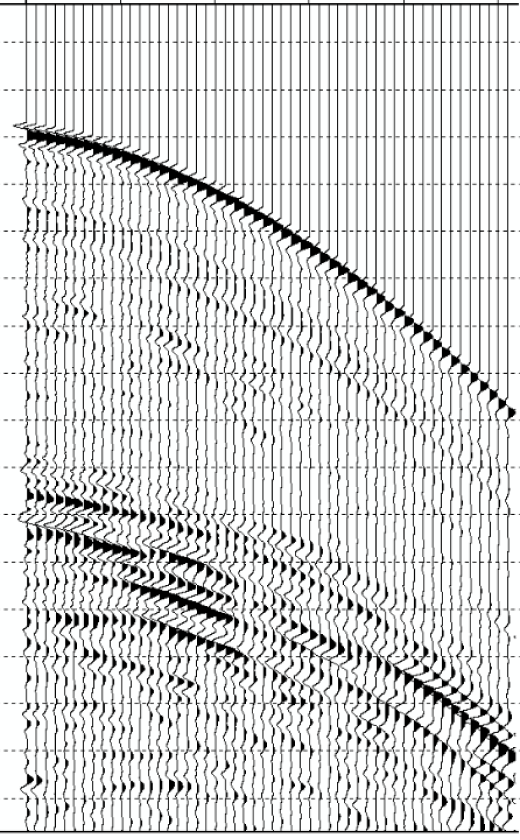

Broadband Processing Input Shot
Input Shot

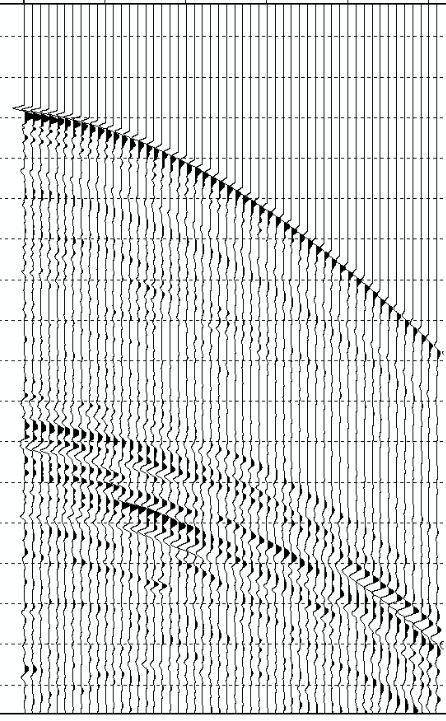

Broadband Processing Deghost Shot
Deghost Shot

As companies strive to extract more information from new and vintage marine acquisition the phenomena of the source and cable ghost needs to be compensated for.

The ghost reflection not only impacts the higher frequencies by introducing notches, but also causes a loss of amplitude at lower frequencies. These lower frequencies are essential for broadband processing and subsequent inversion attribute analysis.

Broadband Processing Spectrum Input

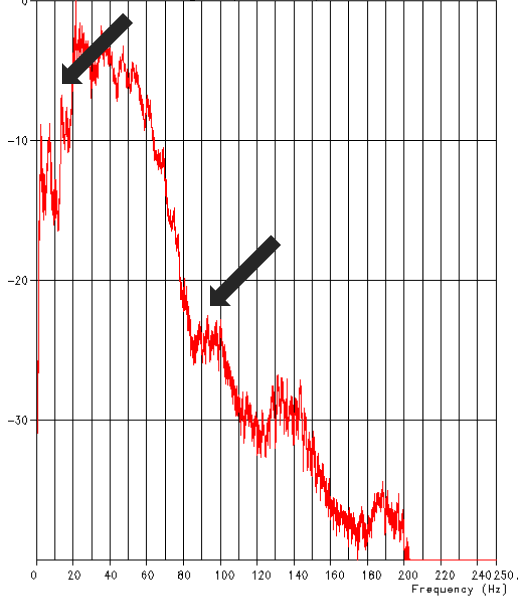

Spectrum Input Shot

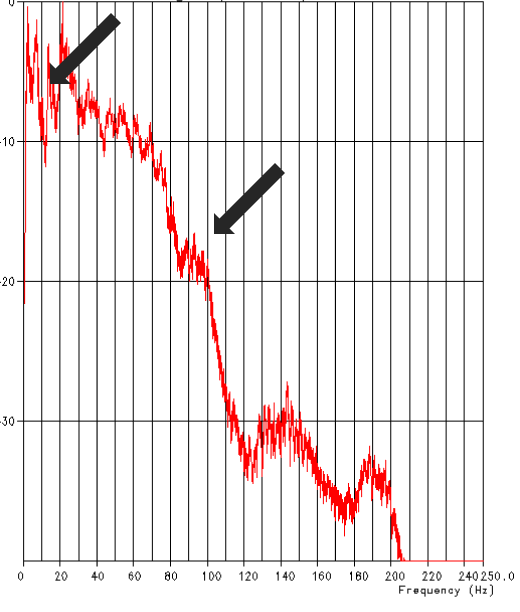

Spectrum Deghost Shot

Implementing Emerson’s algorithm, either in the X-T or Tau-P domains, and by knowing the acquisition parameters of source and cable depth we can obtain the ghost free wavefield.

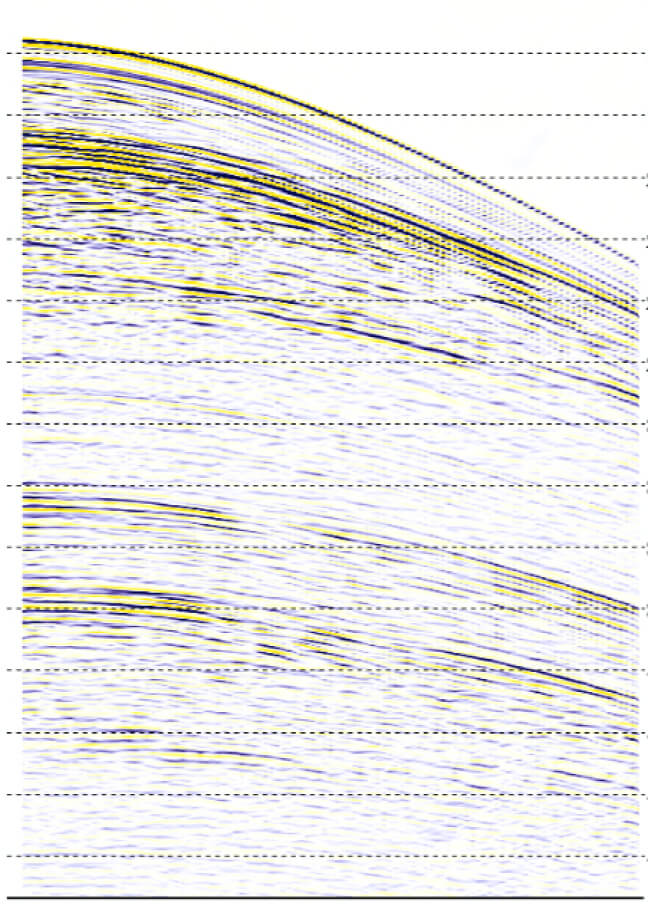

Input Shot

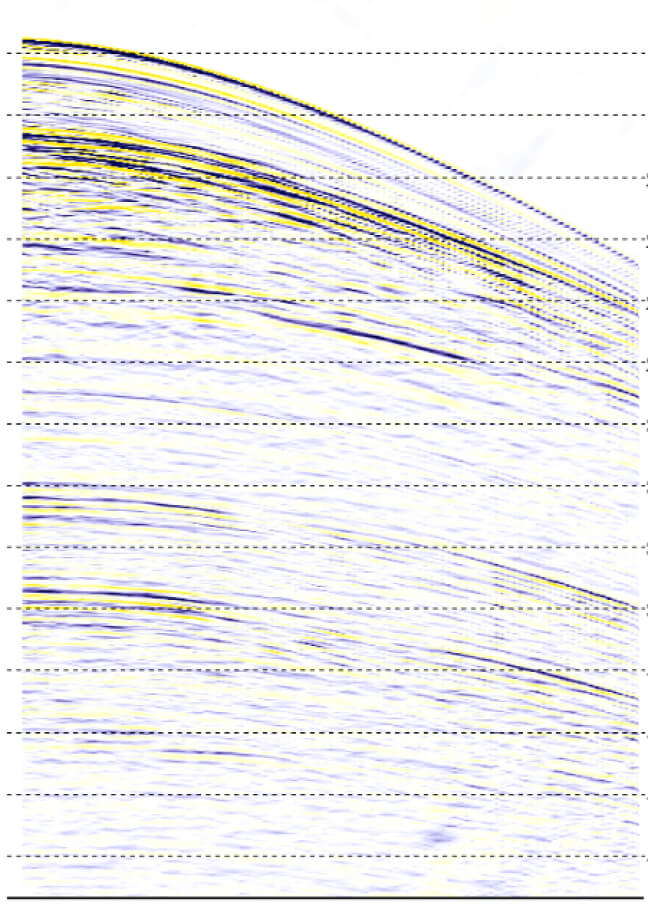

Broadband Processing Deghost Shot 2
Deghost Shot
